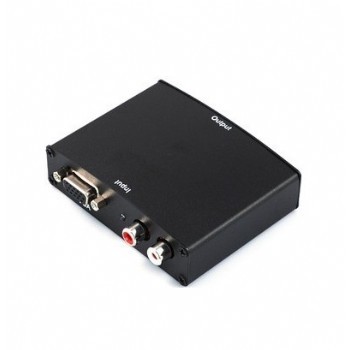

VGA to HDMI Converter 1080P

Product descriptions

  • Specification
  • Feature
  • Drawing
  • Accessory
  • Download
  • Products Series


Introduction:


This kind of the Converter is a VGA video converter. It converts VGA input into HDMI to allow PC users to show their image not only on the PC’s monitor, but could also on TV, to have a large display. The conversion is along with the R/L audio. Converter offers solutions for digital entertainment center, HDTV retail and  show site, HDTV, STB, DVD and Projector factory, noise space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.


Feature:


The series of the HDMI Amplifier Converter  have many features that enable them to perform in a superior manner. among those features you will find:

1、Conversion: It could convert PC’s VGA video and R/L audio into complete HDMI.
2、Extend the transmission distance and improve transmission signal.
3、Extra VGA and R/L audio outputs: the outputs could be connected back to PC’s monitor and speakers.
4、Compatible with DVI by using HDMI to DVI  adapter.
5、Metal casing design and overall shielding without signal interference.
6、Led indicates signal and power mode.
7、Power supply (please refer to technical parameter).

Specification:

Signal Inputs/Output



Input Video Signal

0.5-1.0 volts p-p

Input DDC Signal

5 volts p-p (TTL)

Maximum Single Link Range

1600X1200, 1080P

Output Video

HDMI + HDCP1.0/1.1

VGA

640x480 60Hz 72Hz 75Hz

800x600 60Hz 72Hz 75Hz

1024x768 60Hz 70Hz 75Hz

1280x1024 60Hz

1600x1200 60Hz

DTV/HDTV

480i/576i/480p/576p/720p/1080i/1080P

Operating Frequency



Frequency

Up to165MHz

Video Amplifier Bandwidth

1.65Gpbs/165MHz

Resolutions(HDTV)



Interlaced(50&60Hz)

480i,576i,1080i

Progressive(50&60Hz)

480p,576p,720p,1080p

Mechanical



Size(LxWxH)

88x68x25.5mm

Weight(Net)

0.68Kg

Warranty



Limited Warranty

1 Year Parts and Labor

Environmental



Operating Temperature

0 to +70℃

Operating Humidity

10% to 85 % RH (no condensation)

Storage Temperature

-10 to +80℃

Storage Humidity

5% to 95 % RH (no condensation)

Power Requirement



External Power Supply

DC 5V 1A

Regulatory Approvals



Converter Unit

CE,FCC,ROHS

Power Supply

CE,FCC,PSE,TK,UL

Accessories Adapter



AC Power Adapter

US standard, UK standard and so on

User Manual

English Version






No. Title Download

1 User Manual

2 Software

3 Leaflet

4 Specification

5 Drawing

* Design and specification are subject to change without notice.
