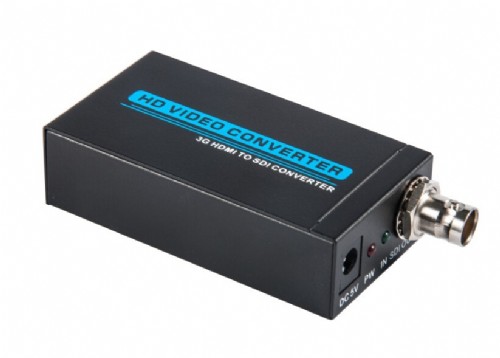

HDMI TO 3G SDI CONVERTER 1080P

Product descriptions

  • Specification
  • Feature
  • Drawing
  • Accessory
  • Download
  • Products Series

I. Introduction

The MINI HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high def HDMI signal with audio to SDI for long distance transmission and display your work on SDI display.

II. Features

Shows HDMI source on SDI display.

SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s, 1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s.



Supports HDMI input timings: 480i @ 59.94, 576i, 720p @ 50/59.94/60, 1080i @ 50/59.94/60, 1080p @ 23.98/24/25/29.97/30/50/59.94/60.

Converts HDMI signal to SDI:

480i/576i to SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)

720p/1080i to HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s or 1.485/1.001 Gbit/s)

1080p to 3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)

Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)

III. Package

3G HDMI to SDI Converter

5V1A DC Power Supply Adaptor

Operation Manual

Packing: Color Box Packing
