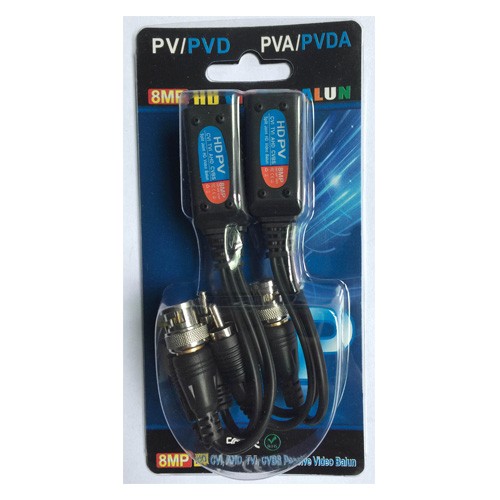

1Channel HD AHD/CVI/TVI Video,Power,Audio Balun,8MP

Product descriptions

  • Specification
  • Feature
  • Drawing
  • Accessory
  • Download
  • Products Series

1Channel Passive HD TVI/CVI/AHD UTP Video+Power+Audio Balun Transceiver.


FEATURES:
Compatible with HD TVI/CVI/AHD 3MP,5MP,8MP

Video transmission via UTP CAT5 or above cable.

Excellent noise interference rejection and built-in transient protection.

Cost-effective point-to-point transmission.

High quality image.

Twisted Pair Video Baluns, for sending video signals up to 100m

Electrical/ Video
Power Source No
Wire Type Unshielded Twisted Pair (24 AWG maximum)
Wire Category Cat3 or better
Wire Impedance 100 ohms +/- 10%
Transmission Distance 200 meters (color) maximum using Cat5e or Cat6
DC Loop Resistance 52 ohms per 1000 feet (18 ohms per 100m)
Video/ Audio Characteristics
Video Input/ Output One BNC (Male)
Input Impedance 75 ohms
Video Format NTSC, PAL, SECAM, CCIR
Frequency Reponse DC to 6MHz
Common Mode/ Differential Mode Rejection  > 60dB typical
 (frequency range from 15KHz to 6MHz)
Audio/ Data Optional
Surge suppression Yes
Control No
Mechanical
Connector
BNC Video input/ output
Terminal Block -
RJ45 UTP input/ output
General
Operating Temperature  -10~+50°C
Relative Humidity 0 to 95%, non-condensing
Dimensions 4.3cm x 2cm x 2.1cm
Weight 40g
