1 Channel Passive HD CVI/AHD/TVI Transceiver,AHD/CVI:300m(Max),TVI:200m(Max)

Product descriptions

Specification
Feature
Drawing
Accessory
Download
Products Series

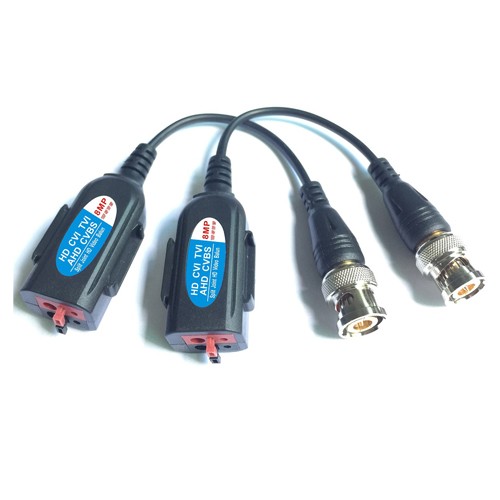

1Channel Passive HD AHD/CVI/TVI Transceiver Video Balun Via CAT5/5E/6

Features

Compatible With AHD/CVI/TVI Signal
Transmission Signal:720P/1080P
Cable:CAT5/5E/6
Transmission Distance to 300m for CVI/AHD,200m for TVI,No Power Required
Built-in Surge Protection/Lightning Protection
Super Interference Rejection

Specifications

Item		Specification
Physical Contents	Dimension(LWH)	13.711.63(mm)
	Shell	ABS
	Color	Black
	N.W.	60g
stability	MTBF	>10,000 Hours
Environmental	Operating Temperature	-15-55
	Storage Temperature	-20-70
	Humidity	0-95%(no condensing)
Contents	Transmission Signal	1 Channel
	Transmission Distance	AHD/CVI:300m(Max)
	Transmission Distance	TVI:200m(Max)
	Category Type	UTP CAT5/5E/6
Video Transmission Contents and Port	Coaxial Video Connector	BNC-M
	Twisted-pair Video Connector	Push-Terminal
	Compatible Format	AHD/CVI/TVI
	Resolution	720P/1080P
	Anti-Interference	>60dB
Protection	ESD	1a contact Discharge electricity Level 3
		1b Air Discharge electricity level 3
		Per:IEC61000-4-2
	Coaxial Cable Connector	2KV(common code)per:IEC1000-4-5
	UTP Cable Connector	2KV(different-code),4KV(common code),Per IEC1000-4-5
Impedance	BNC Male	75Ohms
Impedance	UTP Cable	100Ohms

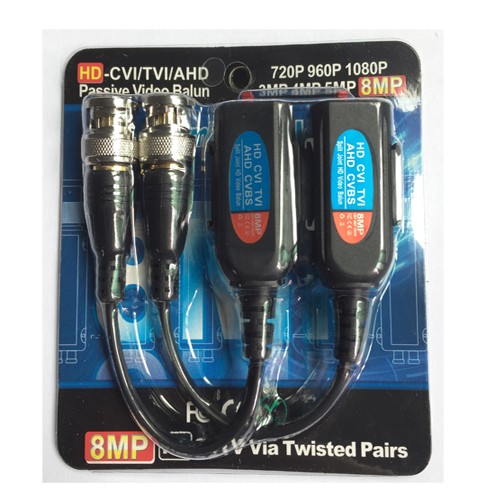

Packing

1Pair/Blister Packing,400pairs/CTN
