1 Channel Passive HD CVI/AHD/TVI Video Transceiver,Linkable

Product descriptions
- Specification
- Feature
- Drawing
- Accessory
- Download
- Products Series

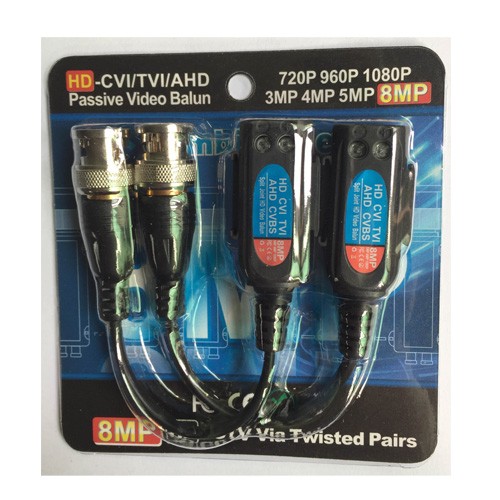

1Channel Passive HD AHD/CVI/TVI Transceiver Video Balun Via CAT5/5E/6,Linkable.
Features
Compatible With AHD/CVI/TVI SignalTransmission Signal:720P/1080P/3MP/5MP/8MP
Cable:CAT5/5E/6
Transmission Distance to 300m for CVI/AHD,200m for TVI,No Power Required
Super Interference Rejection
Linkable
Specifications
Item |
Specification |
|
Physical Contents |
Dimension(L*W*H) |
13.7*11.6*3(mm) |
Shell |
ABS |
|
Color |
Black |
|
N.W. |
60g |
|
stability |
MTBF |
>10,000 Hours |
Environmental |
Operating Temperature |
-15-55 |
Storage Temperature |
-20-70 |
|
Humidity |
0-95%(no condensing) |
|
Contents |
Transmission Signal |
1 Channel |
Transmission Distance |
AHD/CVI:300m(Max) |
|
TVI:200m(Max) |
||
Category Type |
UTP CAT5/5E/6 |
|
Video Transmission Contents and Port |
Coaxial Video Connector |
BNC-M |
Twisted-pair Video Connector |
screw-Terminal |
|
Compatible Format |
AHD/CVI/TVI |
|
Resolution |
720P/1080P/3MP/5MP/8MP |
|
Anti-Interference |
>60dB |
|
Protection |
ESD |
1a contact Discharge electricity Level 3 |
1b Air Discharge electricity level 3 |
||
Per:IEC61000-4-2 |
||
Coaxial Cable Connector |
2KV(common code)per:IEC1000-4-5 |
|
UTP Cable Connector |
2KV(different-code),4KV(common code),Per IEC1000-4-5 |
|
Impedance |
BNC Male |
75Ohms |
UTP Cable |
100Ohms |
