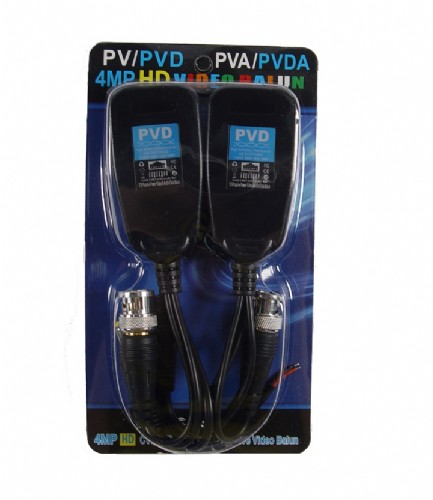

1CH HD TVI/CVI/AHD PVD Video,Power&Data Balun

Product descriptions

  • Specification
  • Feature
  • Drawing
  • Accessory
  • Download
  • Products Series



Model

RX-207PVD

     Applied  Devices

CCTV cameras, monitors, DVR, switchers, IP encoders, etc

Video

Video Format

PAL, NTSC, SECAM

Operating Frequency

DC to 8MHz

Max Distance

UTP Category 5e (24AWG) Color: 1000ft(300m)  B&W: 1950ft(600m)

Common-mode/Differential-mode rejection

         15 KHz to 5 MHz  60 dB typ

Impedance

Coax, Male BNC  75Ω unbalanced    UTP

Attenuation

1.5 dB typ Max

Wire Type

Network Wiring

One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm)

Category Type

2 or better

Impedance

100 ± 20 ohms

DC Loop Resistance

52 ohms per 1,000ft (18 ohms per 100m)

Differential Capacitance

19 pF/ft max (62 pF/m max)

 Power



No external power required

Connector

Video input/output

Male BNC connector

Video input/output

RJ45 Jack

Mechanical

Housing

PVC

Body Color

Black

Dimensions (L*W*H)

45X25X23mm

Net Weight

150g

Environmental

Operating Temperature

-20º ~ 70º C

Relative Humidity

0~95% (non-condensing)

Storage Temperature

-40º ~ 150º C

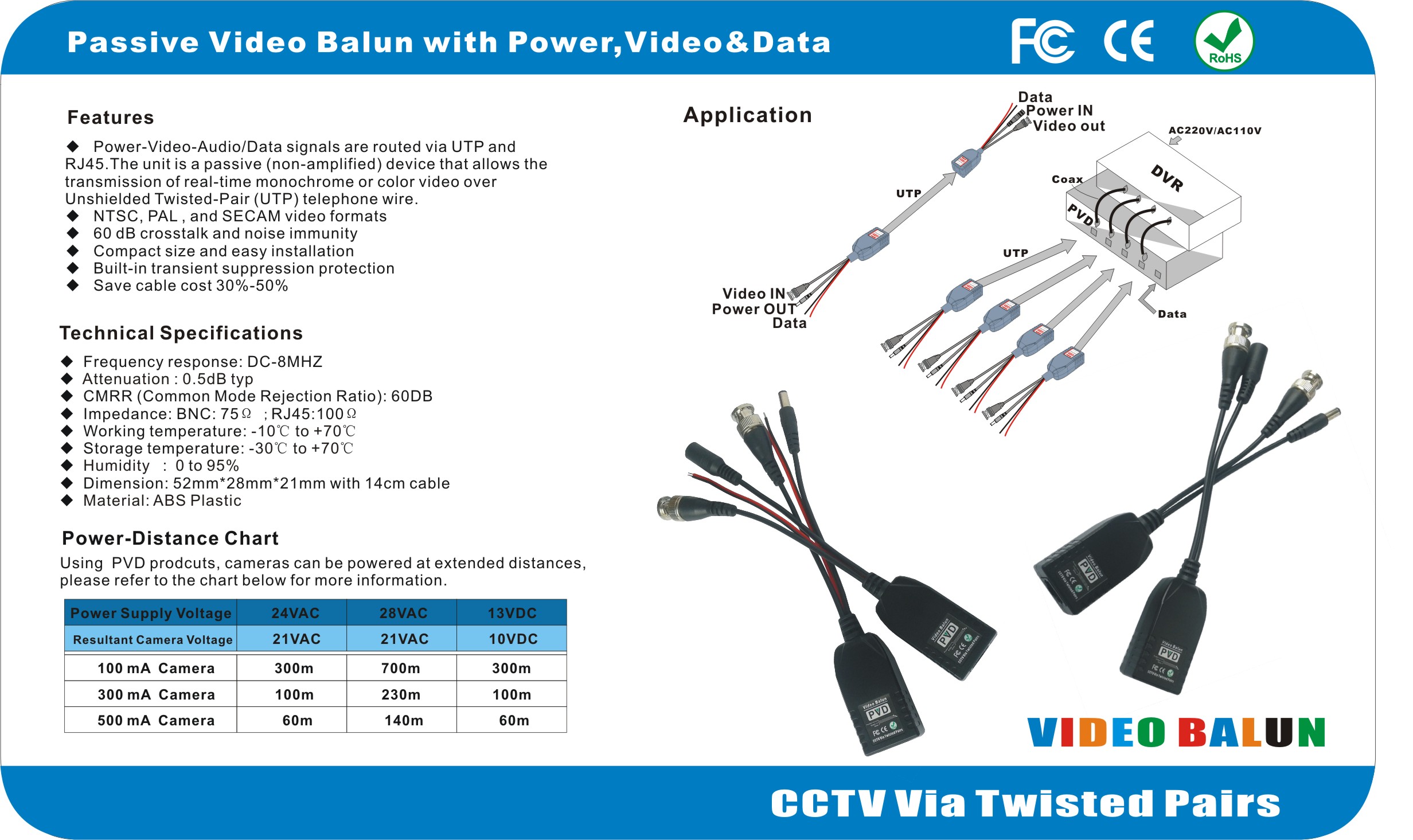

• Single channel passive video,power&data transceiver(12V-50VDC or 24VAC for PTZ dome cameras)

• Full-motion color video signal up to 1000ft(300m) via UTP cat5e/6.

• NTSC,PAL&SECAM video format compatible.

• Transmit power signal up to 300ft(100m).
• Transimit data signal up to 300ft(100m).
•
Real-time transmission.

• No power required.

• RJ45Jack.

• Male BNC.

• Exceptional interference rejection.

• 60 dB crosstalk and noise immunity.

• Compact size and easy installation.

Applications:

• Security monitoring system

• Multimedia network teaching system

• Medical monitoring display system

• Industrial antomation control system

• Banking,securities,financial information display system

• Remote network server monitoring

• Depatment store security

• Casino security

• Hospitals,airports,schools and banks
