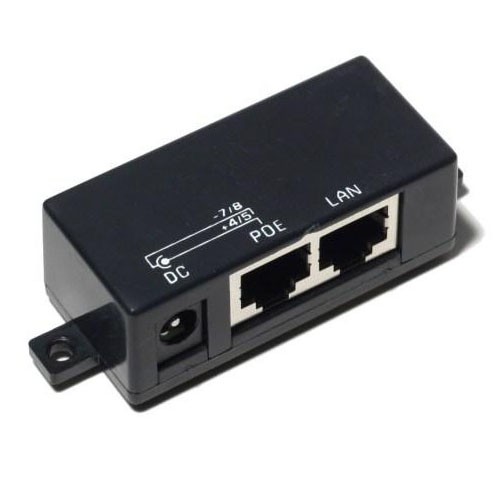

Gigabit or 10/100Mbps Passive PoE injector Splitter Wall Mount with Data Check Power Protection

Features

Passive POE (Power Over Ethernet) adapter, uses unused pairs of 100baseT network cable
to transmit power to remote device. Pin out DC jack center positive, It is compatible with
equipment supporting the standard PoE pin out (Pins 4&5 Power/ Pins 7&8 Power-)

Specifications

●Passive DC power Injector / Splitter
●Ethernet Connection Two (2) 10/100BaseT (RJ-45)
●Power Connection One (1) male 2.1 mm (I.D.) 5.5 mm (O.D.)
●CAT-5e Power Pinouts vDC Pins 4/ 5 and -vDC Pins 7/ 8
●Enclosure Size 2"x .5" x .5"
●Power/Data mixer
●Ethernet switches expand to wireless AP
●White colour

Installation:

Device without POE function:

Installation:

Device with POE function:
