POE Injector,Data Rate:10/100Mbps,Standard IEEE802.3af and 15.4W.

Product descriptions

  • Specification
  • Feature
  • Drawing
  • Accessory
  • Download
  • Products Series

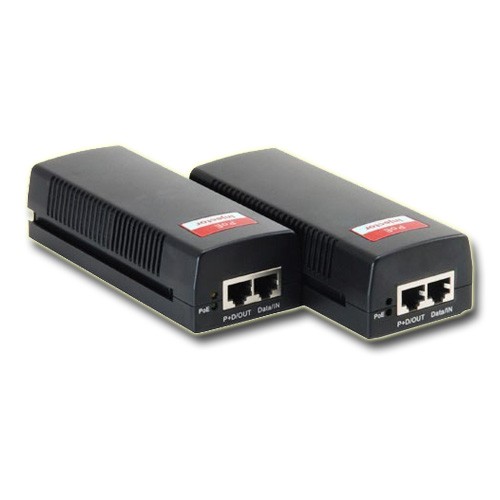

POE Injector,Data Rate:10/100Mbps,Standard IEEE802.3af and 15.4W.(RX-PSE803)


Advanced POE Solution
The RX-PSE803 is a single port,high power POE PSE Solution for remote POE PD devices.Generating up to 30W,RX-PSE803 Supplies remote power for new applications such as wireless access points.PTZ IP Cameras and video phones.It complies with IEEE802.3af POE Standard.It can work with 10/100 Base-T networking devices and wireless IEEE802.1 In access points.For all the function featured in RX-PSE803,people can get the benefit of flexible network installation at lower cost,less downtime,It also provides a high-bandwidth pipe to the network.

Main Features
Up to 15.4W of POE Power
IEEE802.3af Compliance
Compatible with IEEE802.3af or legacy POE applications
Safe on Low Power Devices Receive Only the power they need
Safe and reliable power to WLAN Access Points
Automatic Detection and Protection of Non-standard Ethernet terminals
Supports 10/100Base-T LAN enviroment
Unique interlocking feature for easy installation

Interface Discription

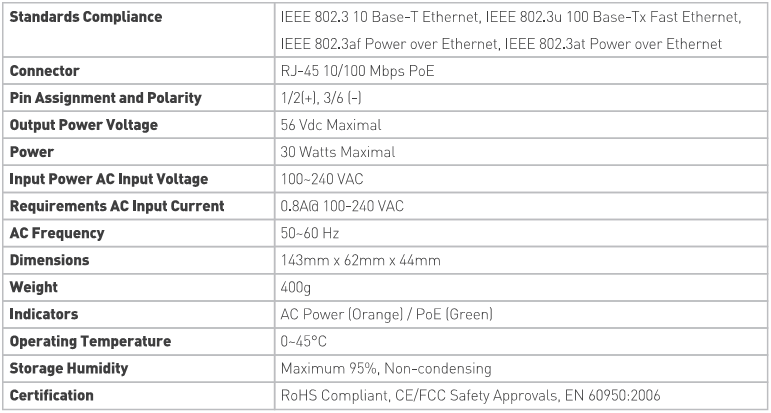

Technical Specification


Package Information
1PC/Brown Box,40PCS/Master Carton
