POE Splitter With Switchable Output Power 10/100Mbps Standard IEEE802.3af 15.4W

Product descriptions

  • Specification
  • Feature
  • Drawing
  • Accessory
  • Download
  • Products Series

POE Splitter With Switchable Output Power 10/100Mbps Standard IEEE802.3af 15.4W

Product Description

Advanced POE Solution

RX-POE5912 PoE Splitter splits a networked PoE signal into separate power and Fast Ethernet data sources. This device allows administrators to run Fast Ethernet speed PoE cables over long distances and then split the PoE signal into separate data and power sources in order to network non-PoE devices. This active PoE splitter is available in the following output voltages (5V or 9V OR 12V). Save installation and equipment cost when installing access points, IP cameras and more in remote locations With no need to install network devices near a power outlet. This compact device safeguards valuable network equipment with short circuit protection and quickly creates an integrated PoE and non PoE network at Fast Ethernet speeds.

Main Features

Network Devices at 10/100Mbps all within a compact device.
Automatically detects POE terminals and supplies inline power
Easily install non-POE Devices where a power outlet is not available
Reduce installation and network equipment costs
Safeguards network device with short circuit protection
Adjustable output DIP Switch for 5V,9V and 12V adjustable output
Converts Non-POE devices with power over Ethernet Support
Auto-sensing power drawn from 802.3af power source equipment (PSE)devices
Supplies power up to 12.9watts
Provides Interchangable tips

 Interface Description

 Technical Specification

PoE Splitter Models Specifications
Model PoE5912  PoE5912G PoE5912TG
Requlatory 802.3af 802.3af 802.3at
Data Rate 10/100M Gigabit Gigabit
Input Power Voltage DC48V/0.3A DC48V/0.3A DC48V/0.6A
Output Power Voltage 5V(2A), 9V(1.1A), 12V(1A) 5V(2A), 9V(1.1A), 12V(1A) 5V(4.5A), 9V(2.3A), 12V(2A)
Input Power Requirement 1/2(+) 3/6(-) or 4/5(+) 7/8(-)
Jumper Cable DC 2.1*5.5*9.5mm (L-300mm)
Connectors Shielded RJ-45, EIA 568A and 568B
Diagnostic LEDs DC Power is Green
Temperature
Operating: -10 ~ 45
Humidity
10 ~ 90% (Non-Condensing)
Dimension
80 (L) x 55 (W) x 31 (H) mm
Weight
76 g
Certificate CE, FCC,Rohs

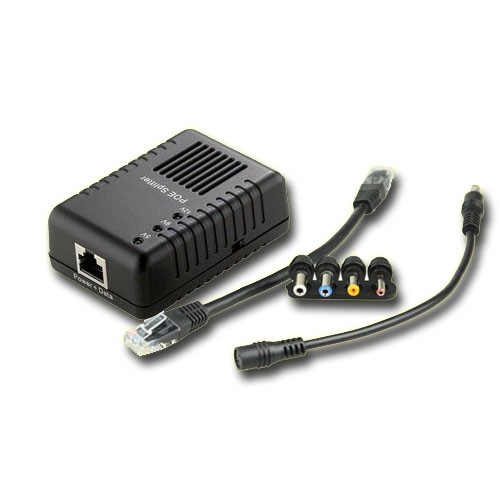

Package Content
1x POE Splitter
1x Quick Installation Guide
1x Network Cable
1x DC Cable
4x Interchangable Tip
