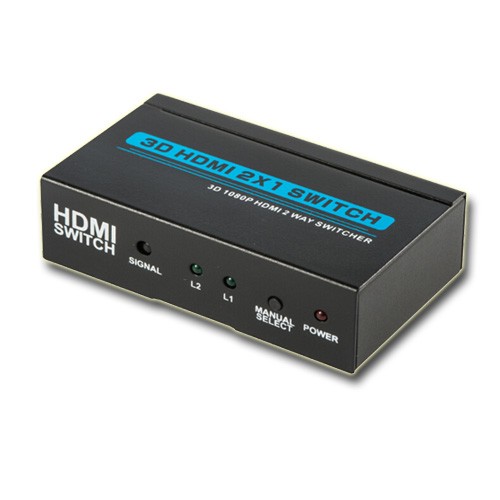

HDMI Switch 2x1,3D Full HD 1080P,HDMI1.3 Version

Product descriptions

  • Specification
  • Feature
  • Drawing
  • Accessory
  • Download
  • Products Series

HDMI Switch 2x1,3D full HD 1080P, HDMI 1.3 Version.

Product Specification

HDMI Switch is a product that can switch multi-group HDMI signals to one high definition display
device such as HDTV by using manual pushbutton.
Doing so can avoid plugging and unplugging
cables frequently.
It can optimize your home theater system to the best effect.

Features

1、 Switching is done via itself automatically when signal present on the ports.

2、 Support HDCP protocol and applicable to source device and high definition display device
such as DVD and HDTV which have HDMI ports or digital ports,
and are compliant with
HDCP protocol
.

3、 Support high resolutions up to 1920*1200,including 480i/p,576p,720i/p,1080i/p.

4、 Support HDMI1.3

5、 Extend the transmission distance and improve transmission signal.

6、 Compatible with DVI by using HDMI TO DVI adapter.

7、 Plug-and-play.

8、 Convenient to connect multi-group input signals to display on one HDTV.

9、 Save space. Allow several sources to use one high definition display device simultaneously.

10、 Metal casing design and overall shielding without signal interference.

11、 Select input port by hand freely.

12、 LED indicates signal and power mode.

13、 Power supply(Please refer to technical parameter)

Technical parameters

Product

2X1 HDMI SWITCH

HDMI Source Input Port

2

Display Device Output Port

1

Source Port Connector

19 PIN HDMI(A TYPE)

Display Device Port Connector

19 PIN HDMI(A TYPE)

HDCP Compliant

YES

Source Device Selection

Push Button IR Remote Control

Input Video Signal

0.5-1.0 Volts P-P

Input DDC signal

5 Volts P-P(TTL)

Deep Color

36bit

Single Link Range

1920*1200

HDMI Version

HDMI1.3

Bandwidth

Up to 340Mhz

Signal Speed

Up to 10.2Gbps

The length of input cable

PS3≤10M;BLUE DVD≤10M

The length of output cable

≤10M

The cable standard

28AWG HDMI1.3

Vertical Frequency Range

60Hz

Power Consumption(max)

1.5 Watts

Operation Temperature

0℃ TO 70℃

Working Voltage

DC 5V

Power Adaptor

5V 1A

Net Weight

115g

Dimension: L×W×H(mm)

84×48×24

Application

It switches several routes HDMI signals from source device such as DVD,Satellite Receiver,
Set-top Box,
DV Camera,A/V Receiver and other HDMI enabled device to high definition display
device such as HDTV and HDMI Flat Panel Display.



How It Works



Note: When HDMI Switch works, make sure the source device and display device are well
connected
with cables.In order to make the relevant ports work properly,firstly power on switch,
the power on source device.



Package Contents

1、HDMI SWITCH:         1Piece

2、5V DC Power Adaptor:   1Piece(Optional)

3、User Manual:           1Piece

4、Remote Control:        1Piece(Optional)






No. Title Download

1 User Manual

2 Software

3 Leaflet

4 Specification

5 Drawing


* Design and specification are subject to change without notice.
