HDMI Extender 60M,3D Full HD 1080P,HDMI to RJ45 Extender Over CAT5E/6x1

Product descriptions

  • Specification
  • Feature
  • Drawing
  • Accessory
  • Download
  • Products Series

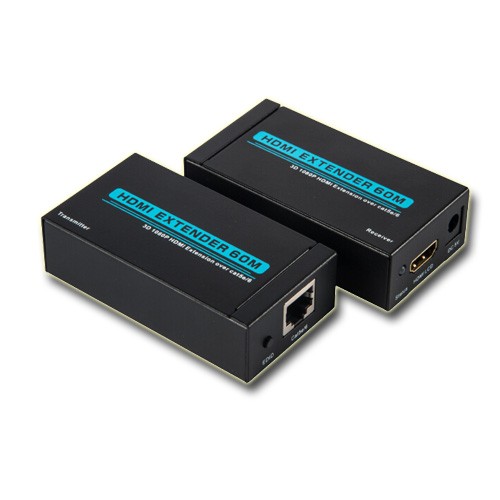

HDMI Extender 60M,3D Full HD 1080P,HDMI to RJ45 Extender Over CAT5E/6x1

Introduction

The HDMI to RJ45 Extender use single CAT5E/6 (recommended)cables up to 60 meters instead of HDMI
cable to transmit high definition signal,for cutting down cost.Long distance transmission of high definition
is very difficult because HDMI cable is very expensive and infrequent. The Extender is designed to supply
for long distance transmission of high definition signal.

Features

1. HDCP 1.2 protocol compliant

2. Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

3. Signal transmission :cat5e or cat-6(recommended) cables up to 60

   meters instead of HDMI cables are connected between TX and RX Extender.

4. Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

5. Support CEC

6. Audio format support : DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

7. No loss of quality

8. Installs in minutes

9. Need DC5V/1A power supply

Specification

Length of CAT-6 cable between Transmitter and Receiver: Up to 60 meters

HDMI Input: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format input: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

HDMI Output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio format output: LPCM7.1/DTS/Dolby-AC3/DSD

Max bandwidth: 165MHz

Max baud rate: 4.95Gbps

Input Video signal : 0.5~1.5Volts p-p

Output DDC signal: 5Volts p-p (TT1L)

Input/Output HDMI cable distance: ≤20m AWG26 HDMI standard cable

Max working current: 800mA

Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A

Operating Temperature range: (-15 to +55℃)

Operating Humidity range: 5 to 90%RH (No Condensation)

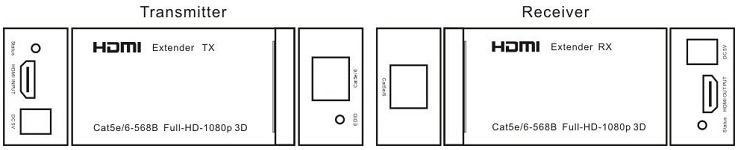

Panel


Application

Package Content

1.Power supply-----------------------2 Pcs

2.User manual------------------------1 Pcs

3.HDMI Transmitter------------------1 Pcs

4.HDMI Receiver---------------------1 Pcs
