HDMI Extender 50M HDMI to RJ45 Extender Over CAT5E/6x2 With IR

Product descriptions

  • Specification
  • Feature
  • Drawing
  • Accessory
  • Download
  • Products Series

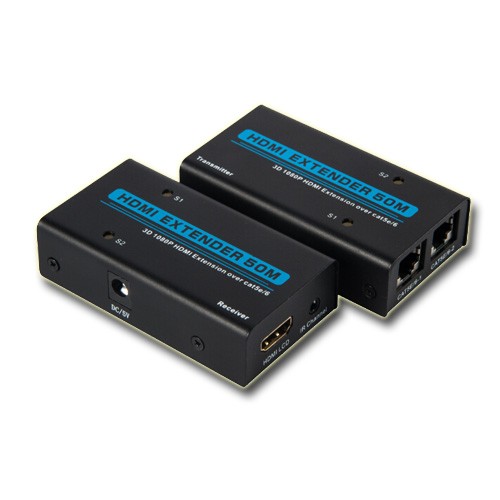

HDMI Extender 50M,3D Full HD 1080P,HDMI to RJ45 Extender Over CAT5E/6x2 With IR

Basic Function

1、 No need to set up, plug and play;

2、 3D support;

3、 Full HD 1080P extension to 50m;

4、 CEC pass through.

Operation

1、Connect the signal source(such as HD-DVD,PS3,STB)with HDMI input interfaces.

2、Connect the display devices(such as HD-LCD,HD-DLP)with HDMI output interfaces.

3、Connect the Cat5e/6-1 of TX to the Cat5e/6-1 of RX with network cable EIA / TIA 568B.

4、Connect the Cat5e/6-2 of TX to the Cat5e/6-2 of RX with network cable EIA / TIA 568B.

Specification

HDMI version----------------------------------------------HDMI 3D

HDCP version---------------------------------------------HDCP1.2

Support HDMI resolution-------------------------------1080P/1080i/720P/576P/576i/480P/480i

Support video color bit----------------------------------deep color 24bit/36bit

Support audio format------------------------------------LPCM/Dolby-AC3/DST7.1/DSD

Input video signal-----------------------------------------5.0Volts P-P

Output cable distance------------------------------------≤5 Meter

Input cable distance--------------------------------------≤5 Meter

Data transfer speed---------------------------------------6.75Gbps-10.2Gbps

Operating Humidity range--------------------------------5 to 90%RH(No Condensation)

Operating Temperature range--------------------------- -15 to+55℃(5 to 131 ℉)

Power adapter format-------------------------------------Input AC(50Hz-60Hz)100-240V

Power supply------------------------------------------------ DC 5V



Aplication

Panel Introduction



Package Content



1、 Power supply

2、 User manual

3、 HDMI Extender Receiver & Transmitter






No. Title Download

1 User Manual

2 Software

3 Leaflet

4 Specification

5 Drawing


* Design and specification are subject to change without notice.
