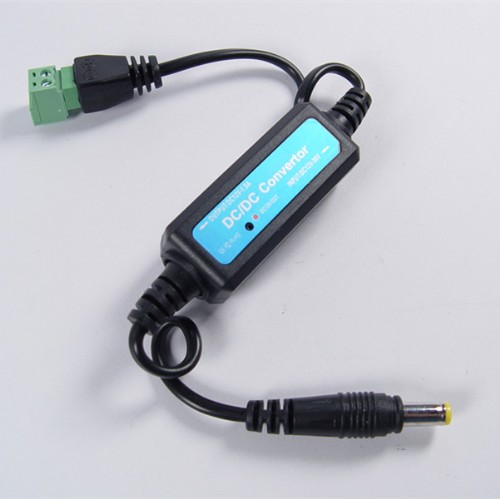

Power converter DC12V-36V to DC12V
Product descriptions
- Specification
- Feature
- Drawing
- Accessory
- Download
- Products Series
Power converter,input power:DC12V-36V,max output power:DC12V,1.5A.
Specification:
Model | RX-T36S1R5 |
Input Voltage | 12-36V DC |
Input Voltage Range | 12-36V DC |
Transfer efficiency | >92% |
Output voltage | 12V |
Output current | 1.5A |
Output power | 18W |
Output peak power | 130% |
Voltage regulation factor | < 1% |
Load regulation | < 2% |
No-load current | < 20mA |
Ripple voltage | < 40mV |
Operation temp. | |
Overcurrent protection | YES |
Overvoltage protection | YES |
Over temp protection | YES |
Short-circuit protection | YES |
Product size | 53*20*18mm |
Package Dimension | 100*96*23mm |
Net Weight | 20g |
Gross Weight | 25g |
