Over 650TVL

· High-resolution processing

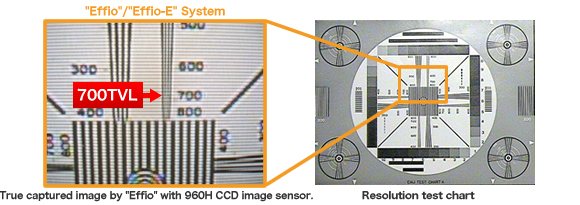

Higher horizontal resolution of over 650TVL by 960H CCD image sensor

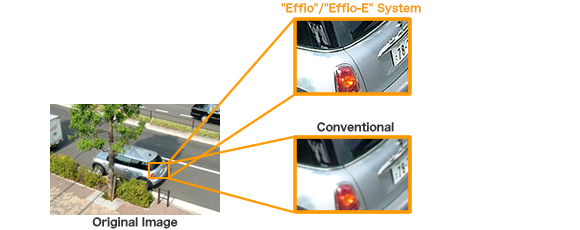

More fine image after E-Zoom operation

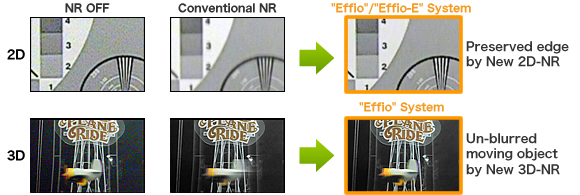

Noise reduction keeping image sharpness

Excellent NR performance under low light condition

• More excellent color reproduction
• Wide range ATW [1,800 K to 10,500 K]
•
  • Gradation compensation to improve image contrast

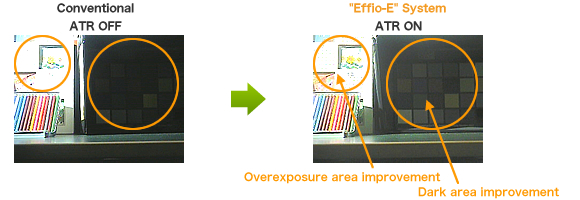

  • Improvement of loss of dark detail and overexposure area
•

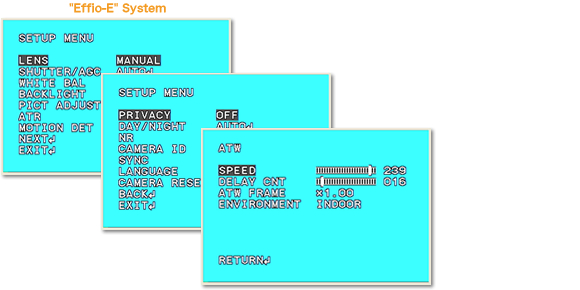

• "Effio-E" OSD function provides preset menus in 8 languages. (EN, FR, DT, ES, POR, CN, RUS, JP)
•
• "Effio-E"System Block Diagram and Main Specification
•

• Super HAD CCD II

  *"Super HAD CCD Ⅱ" is a trademark of Sony Corporation.
  The "Super HAD CCD Ⅱ" is a version of Sony’s high performance CCD HAD (Hole-Accumulation Diode) sensor with realized sensitivity (typical) of 1000mV or more per 1µm² (Color: F5.6/ BW: F8 in 1 s accumulation equivalent.)

  EXview HAD CCD II

  *"EXview HAD CCD Ⅱ" is a trademark of Sony Corporation. The "EXview HAD CCD Ⅱ" is a CCD image sensor that realizes sensitivity (typical) of 1000mV or more per 1µm² (Color: F5.6/ BW: F8 in 1 s accumulation equivalent) and improves light efficiency by including near infrared light region as a basic structure of Sony’s "EXview HAD CCD".

•
