Main Features:
This is a standard plug & play PoE switch, provide 5 10/100/1000M slef-adaption ports, each port support MDI/MDIX auto overturning and line-speed forwarding, 4 ports support PoE function and IEEE802.3af/at to supply power for Ethernet device, dual module automatically detect compatible IEEE802.3af/at standard PD and supply power via Ethernet cable, protect wrongly pluged PD from burning. Every item must be under strict aging test to ensure quality.
1) Support EEE802.3af/at(15.4W/30W) standard, automatically detect IEEE802.3af/at devices firstly and then supply power via Ethernet
2) 5 Ports 10/100/1000M self-adaption RJ45, 4ports support PoE
3) Port power can be upto 15.4W/30W for each port, totally upto 65W.
4) PoE pinEndspan 1/2 (+), 3/6 (–)
5) Support IEEE802.3X full duplex transmission and backpressure half duplex transmission
6) Support port automatically turning(Auto MDI/MDIX)function
7) All ports support line-speed forwarding
8) Support MAC add automatic learning and aging
9) LED indicators; Power input Voltage 110-240V.
10) Simple and convenient to use, no need to configure, plug and play, can flexibly extend network without power layout limitation
Specifications:
| Modelnumber |
RX-PSE401G |
| Port |
5port10/100/1000Mself-adaption |
| 4portsSupportPoE |
| Supportautomaticturning |
| Networktransmission |
10BASE-T:CAT3/CAT4/CAT5UTP(≤100m) |
| 100BASE-TX:CAT5UTPorabove(≤100m) |
| IEEE802.3af |
Supportmax15.4W/30W foreachport |
| LEDindicator |
Power,Link/Act(Lightflash),1000Mbp(Green),PoEpoweroutput(Orange) |
| Dimension(L*W*H) |
125mm*115mm*33mm |
| WorkingEnvironment |
Workingtemperature:0~40C |
| Storingtemperature:-40~70 |
| Workinghumidity:10%~90%(nocondense) |
| Storinghumidity:5%~90%(nocondense) |
|
Power input
Overloadprotection
|
Builtinpowersupply DC48V 65W |
| Max 80W |
| Standards |
SupportIEEE802.3,802.3u,802.3x,802.3af/at |
| CSMA/CD,TCP/IP |
| Basicfunctions |
CompatiblewithIEEE802.3afstandardspowereddevice(PD) |
| Portpowersupplypriority |
| line-speedforwarding |
| MACaudomaticallystudyandage |
| IEEE802.3XfullduplextransmissionandBackpressurehalfduplextransmission |
| Switchcapacity |
1Gbps |
| MACaddlist |
1K |
| Forwardingrate |
10BASE-T:14880pps/port |
| 100BASE-TX:148800pps/port |

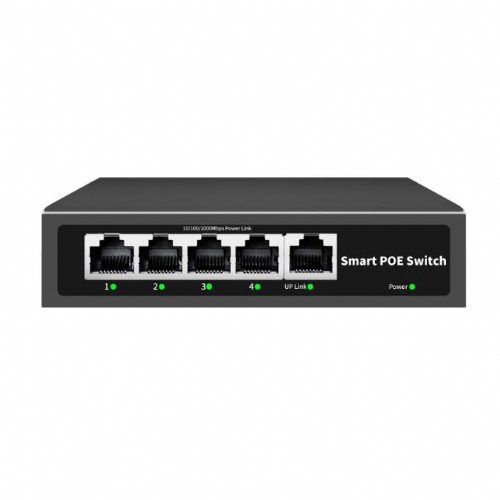

4Port Auto Detection PoE SwitchEthernet10/100/1000MbpsStandard802.3/af/at(US/EU/UK/AU Power plug optional)
IP Cameras (PoE Module inside) and PoE Equipment
1. IP Cameras (PoE Module inside) and PoE Injector
2. IP Cameras (PoE Module inside) and PoE Switch
3. IP Cameras (Without PoE Module inside) and PoE Injector/Splitter
Network Video Surveillance System = 1*IPC or Multi-IPC + PC in LAN or NVR in LAN + Internet WAN
The Free UC Video Surveillance Software in disc is is a functionally powerful and easy monitoring software for simple or complicated Network Video Surveillance System establishment.We have detailed with both pictures&written explanations for UC software operations.
The only one camera can be seen and managed by UC software or Web IE brower in LAN or by remote visit through WAN. The video recorded by the camera can be stored on the PC in LAN.
Multiple cameras can be seen and managed by UC software or Web IE brower in LAN or by remote visit through WAN. The video recorded by the cameras can be stored on the PC in LAN.
Multiple cameras can be seen and managed by NVR software or UC software or Web IE brower in LAN or by remote visit through WAN. The video recorded by the cameras can be stored on the NVRs in LAN.
Multiple NVRs in different LAN can be seen and managed by NVMS software in PC by remote visit through WAN. The video recorded by the cameras can be stored on the NVR in LAN.
