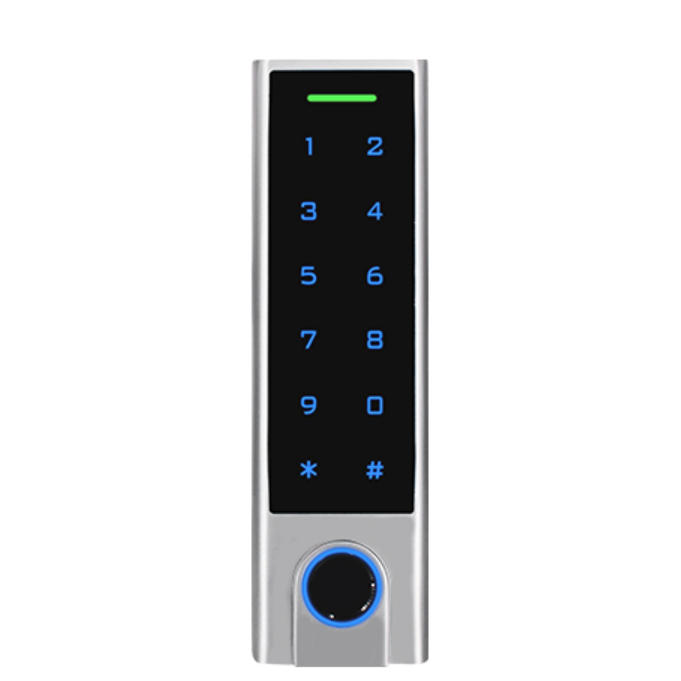

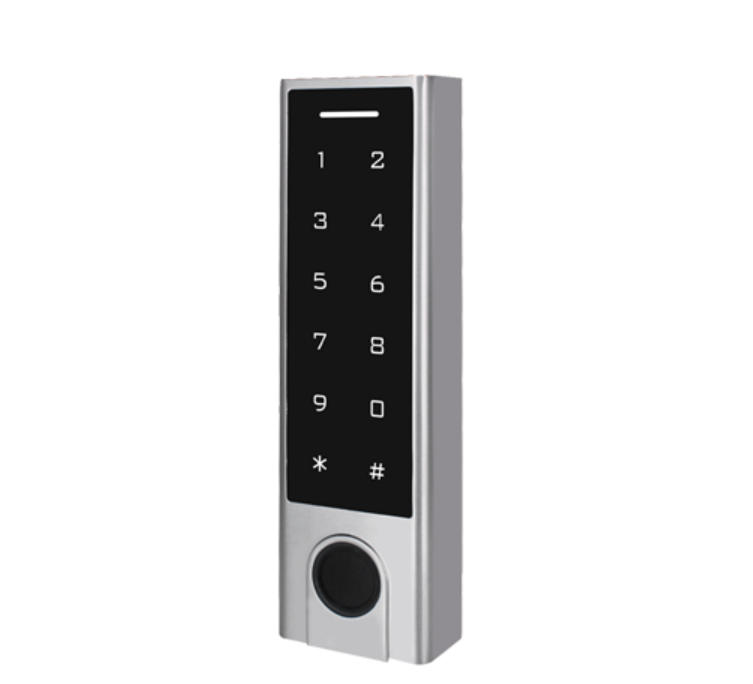

Waterproof Touch Fingerkey & Reader
Item No: RX-HF3
|
User Capacity
Common User
Visitor User Panic User |
1000
988 (100 Fingerprint Users + 888 PIN/Card Users)
10
2 |
| PIN Length | 4~6 digits |
|
Operating Voltage
Idle Current
Active Current |
12~18V DC
≤ 60mA
≤ 150mA |
| Proximity Card Reader Radio Technlogy Read Range |
EM or Mifare 125KHz/13.56MHz 2~6cm |

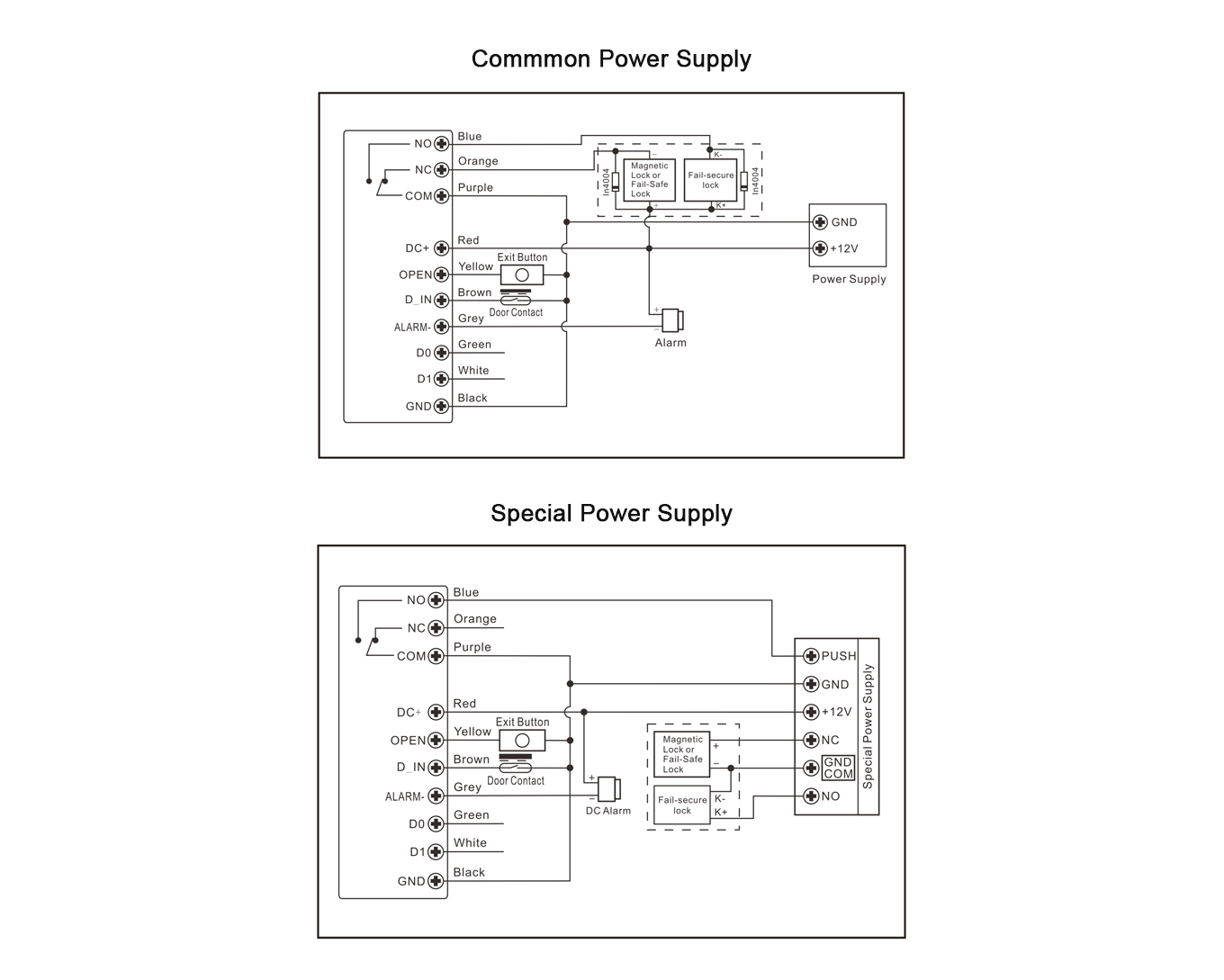

| Wiring Connections | Relay output, exit button, alarm, door contact, Wiegand input/output |
|
Relay
Adjustable Relay Output Time
Lock Output Load
|
One (NO, NC, Common)
0~99 Seconds (5 seconds default)
2 Amp Maximum
|
| Wiegand Interface PIN Output |
EM card version: Wiegand 26~44 bits input & output(Factory default: Wiegand 26bits) Mifare card version:Wiegand 26~44 bits,56bits,58bits input & output(Factory default: Wiegand 34bits) 4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits) |
|
Environment
Operating Temperature
Operating Humidity
|
Meets IP66
-30°C ~ 60°C (-22°F ~ 140°F)
0%RH ~ 98%RH
|
|
Physical
Color

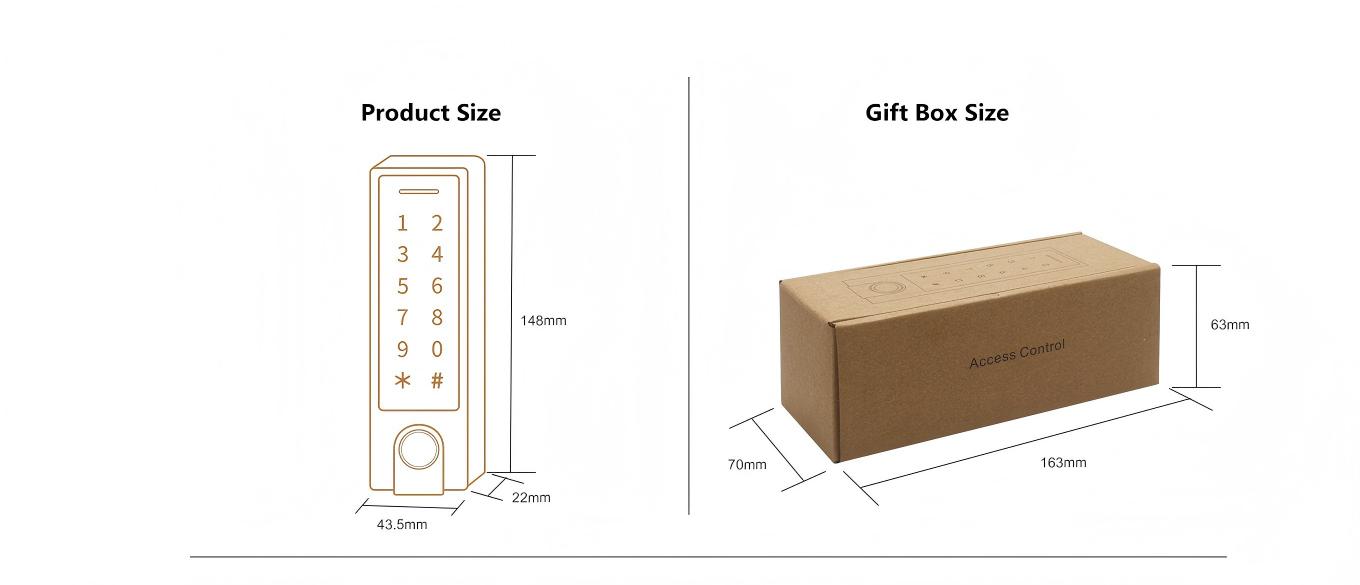

Dimensions
Unit Weight
Shipping Weight
|
Zinc-Alloy
Sliver & Black, Black color optional
L148x W43.5x H22(mm)
330g
405g
|
