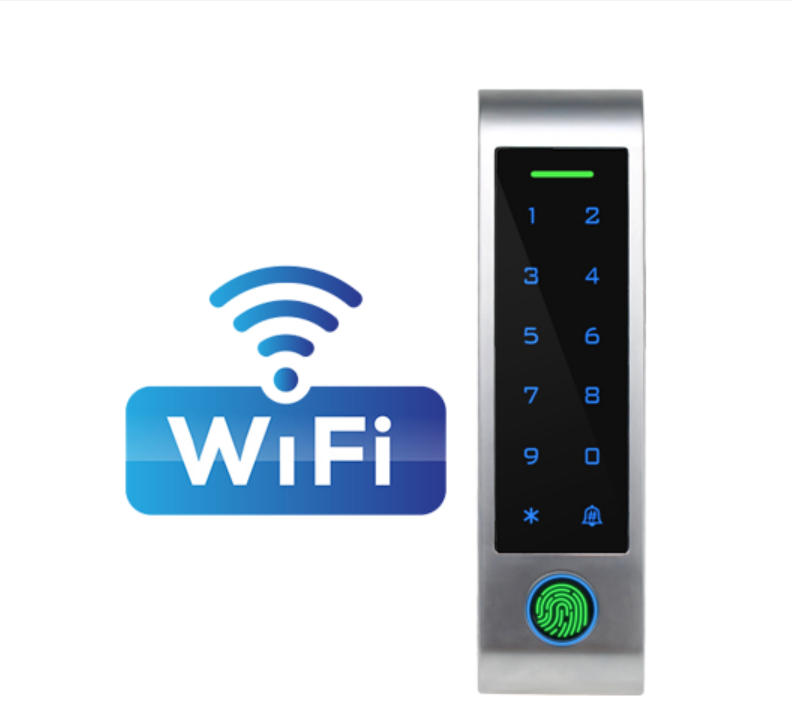

WIFI TouchKey Access Controller

Item No: RX-HF4-WIFI

< >

Description
Related Product

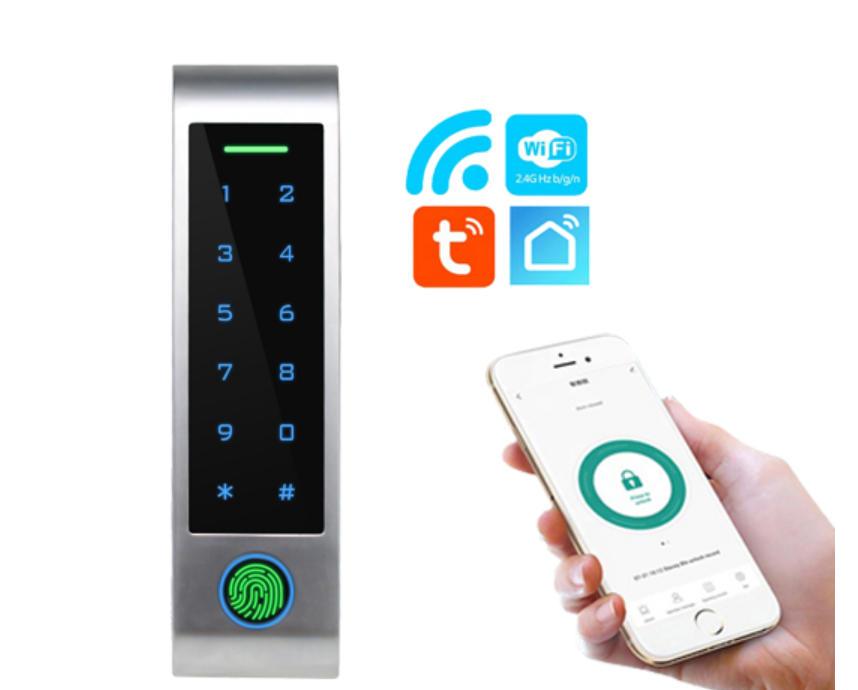

The RX-HF4-WIFI is a WiFi waterproof touch keypad + fingeprint + RFID access controller.
It's integratedwithTuya which supports 500 mobile users and 1000 local users
(including fingerprint / card/ PIN users). It's available for both iOS and Anddroid.

User Capacity

Common User
Visitor User
Panic User

Hardware User: 1000 APP User: 500

988 (100 Fingerprint Users + 888 PIN/Card Users)

10
2

PIN Length

4~6 digits

Operating Voltage

Idle Current
Active Current

12~18V DC

≤ 60mA
≤ 150mA

Proximity Card Reader
Radio Technlogy
Read Range

EM or Mifare
125KHz/13.56MHz
2~6cm

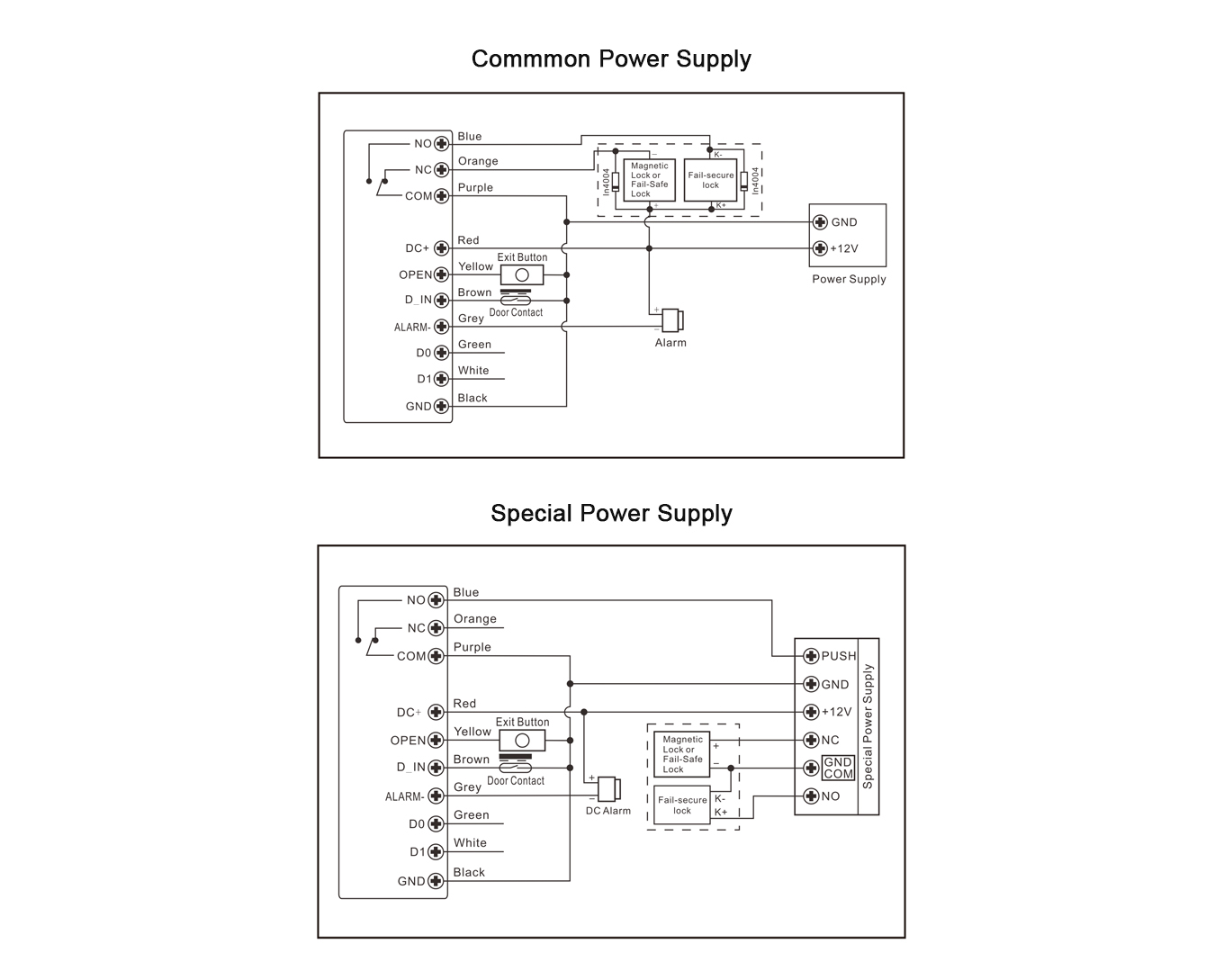

Wiring Connections

Relay output, exit button, alarm, door contact, Wiegand input/output

Relay

Adjustable Relay Output Time

Lock Output Load

One (NO, NC, Common)

0~99 Seconds (5 seconds default)

2 Amp Maximum

Wiegand Interface

PIN Output

EM card version: Wiegand 26~44 bits input & output(Factory default: Wiegand 26bits)

Mifare card version:Wiegand 26~44 bits,56bits,58bits input & output(Factory default: Wiegand 34bits)

4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits)

Environment

Operating Temperature

Operating Humidity

Meets IP66

-30°C ~ 60°C (-22°F ~ 140°F)

0%RH ~ 98%RH

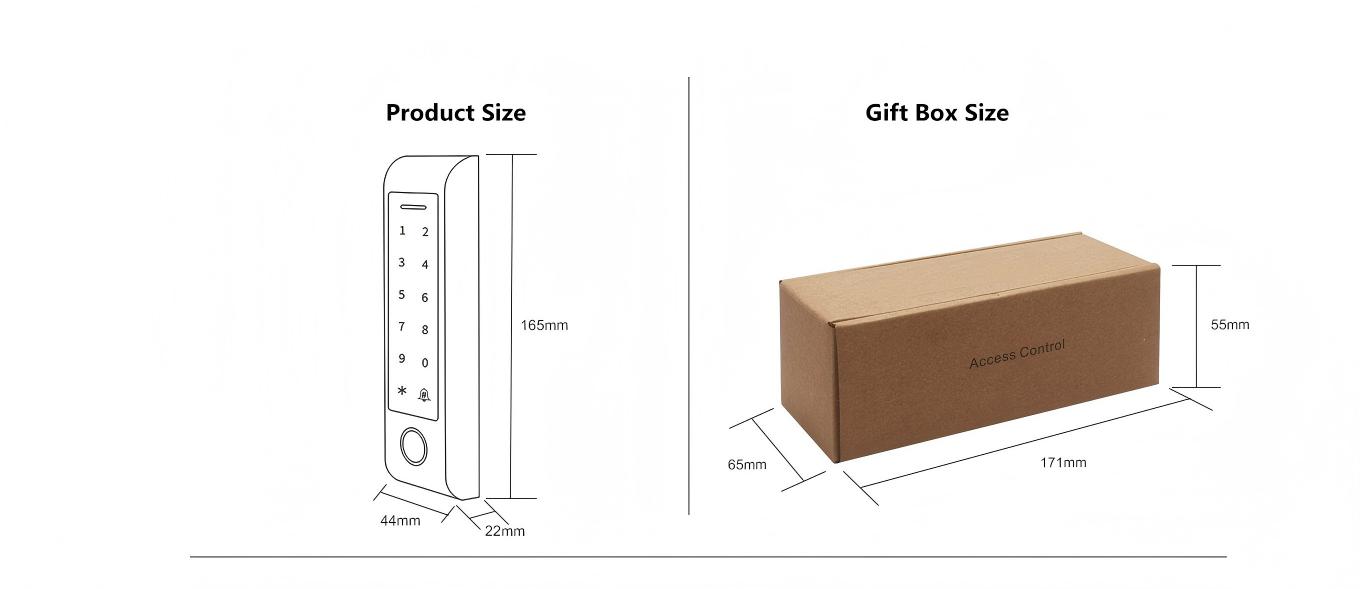

Physical

Color

Dimensions

Unit Weight

Shipping Weight

Zinc-Alloy

Sliver & Black

L148x W43.5x H22(mm)

330g

405g
