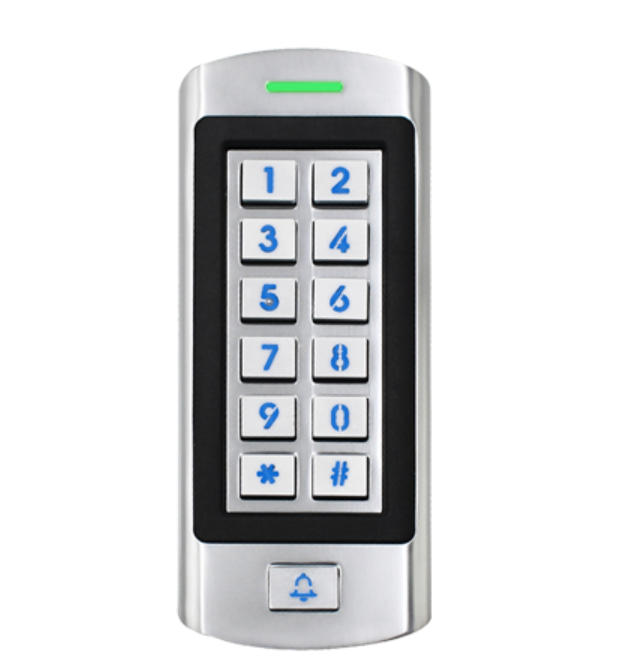

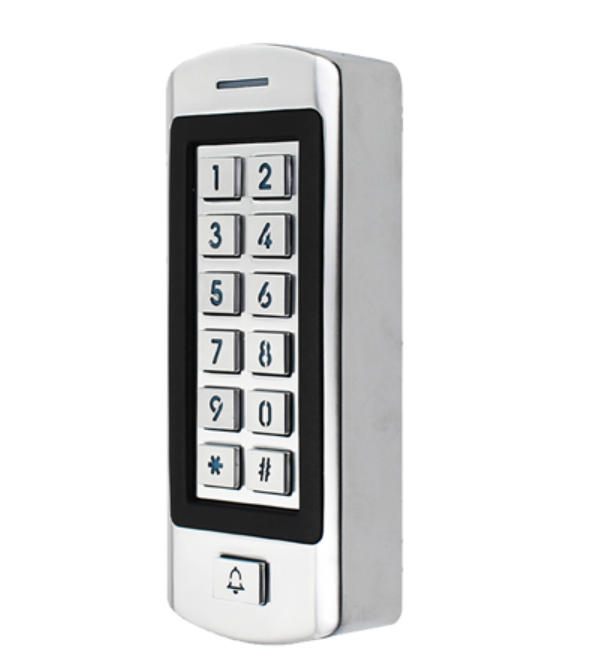

Easy Keypad
>Metal case, backlit keypad
> Waterproof,conforms to IP66
>One relay, 1000 users (990 Normal Users + 10 Visitor Users)
>3 access modes: Card, PIN, Card + PIN
>Card type: 125KHz EM card
>PIN length: 4~6 digits
>Anti-tamper alarm
> With Doorbell for visitors
> Remote Control for optional
K10 is a single entry standalone Access Control with integrated keypad and card reader.
It is an easy to install and operate device, with doorbell and support remote control for open the door.
| User Capacity | 1000 Cards/PINS (990 Normal Users + 10 Visitor Users) |
|
Operating Voltage Idle Current Active Current |
12~18VDC 50mA 80mA |
| Keypad | 12 Key (2*6) |
|
Proximity Card Reader Radio Technology Read Range |
EM 125 KHz Industry Standard Proximity Card 2-6 cm |
| Wiring Connections | Relay Output, Exit Button |
|
Relay Adjustable Relay Output Time Lock Output Load |
One (NO, NC, Common) 0-99 Seconds (5 seconds default) 3 Amp Maximum |
|
Environment Operating Temperature Operating Humidity |
Outdoor -40°C~ 60°C(-40°F~ 140°F) 10%RH-90%RH Non-Condensing |
|
Physical Surface Finish Dimensions Unit Weight Shipping Weight |

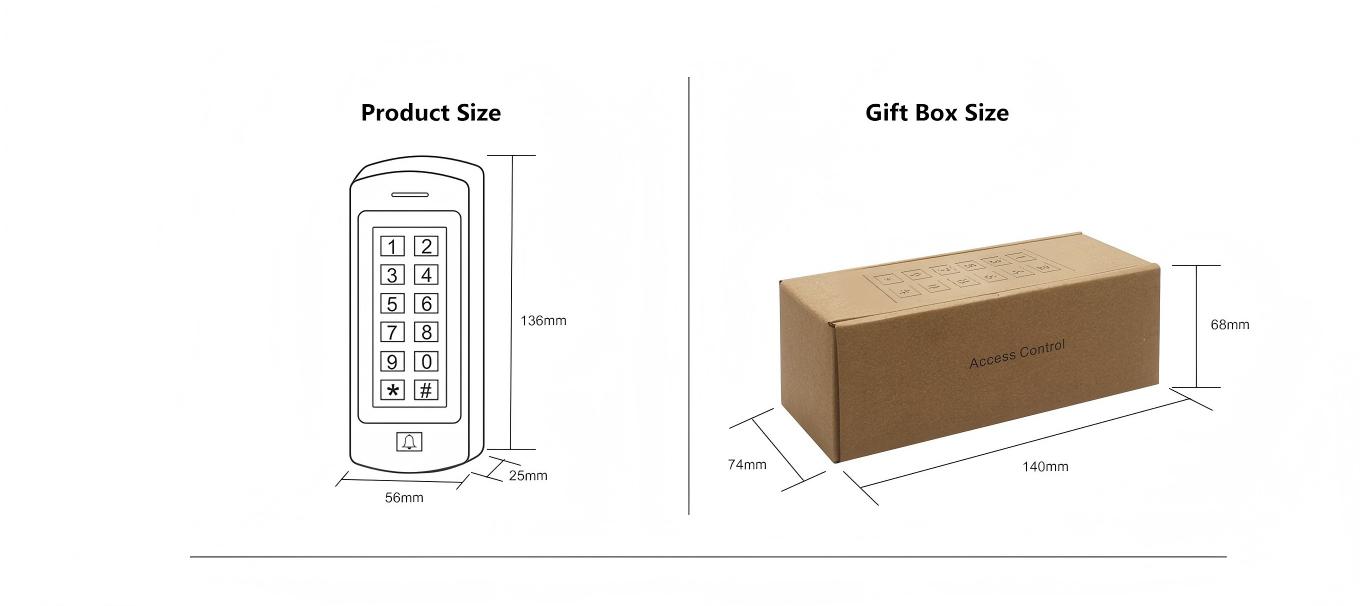

Zinc-Alloy Enclosure Powder Coat 13.6L x 5.6W x 2.5H (cm) 490g 550g |
(1).jpg)
Easy Keypad
RX-K9
