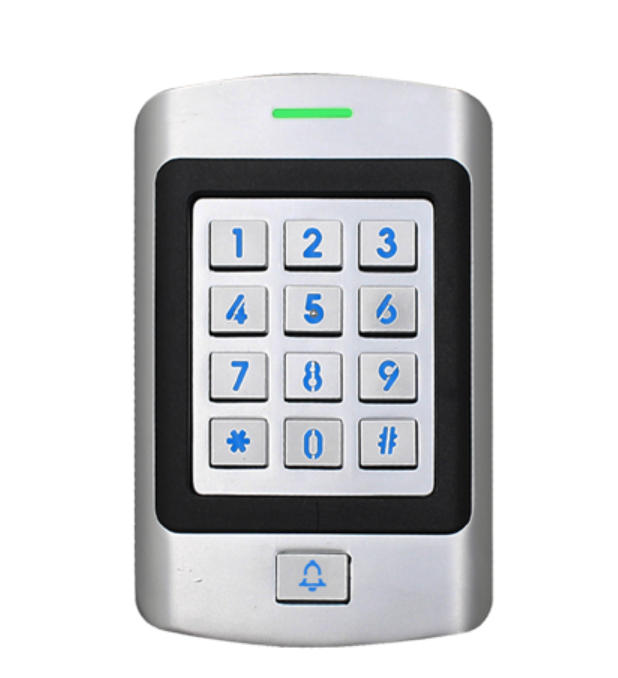

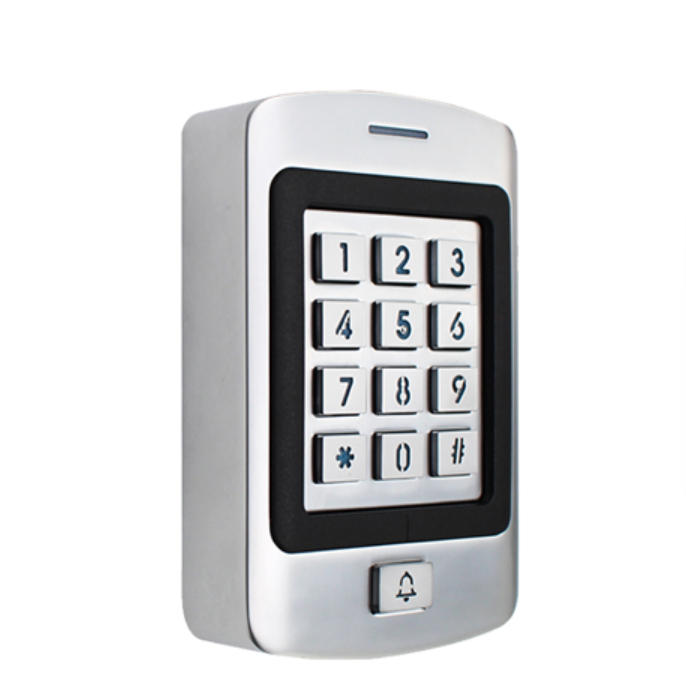

Easy Keypad
>Metal case, backlit keypad
> Waterproof,conforms to IP66
>One relay, 1000 users (990 Normal Users + 10 Visitor Users)
>3 access modes: Card, PIN, Card + PIN
>Card type: 125KHz EM card
>PIN length: 4~6 digits
>Anti-tamper alarm
> With Doorbell for visitors
> Remote Control for optional
| User Capacity |
1000 Cards/PINS (990 Normal Users + 10 Visitor Users) |
|
Operating Voltage
Idle Current
Active Current
|
12~18VDC
50mA
80mA
|
| Keypad |
12 Key (3*4) |
|
Proximity Card Reader
Radio Technology
Read Range
|
EM
125 KHz Industry Standard Proximity Card
2-6 cm
|
| Wiring Connections |
Relay Output, Exit Button |
|
Relay
Adjustable Relay Output Time
Lock Output Load
|
One (NO, NC, Common)
0-99 Seconds (5 seconds default)
3 Amp Maximum
|
|
Environment
Operating Temperature
Operating Humidity
|
Outdoor
-40°C~ 60°C(-40°F~ 140°F)
10%RH-90%RH Non-Condensing
|
|
Physical
Surface Finish

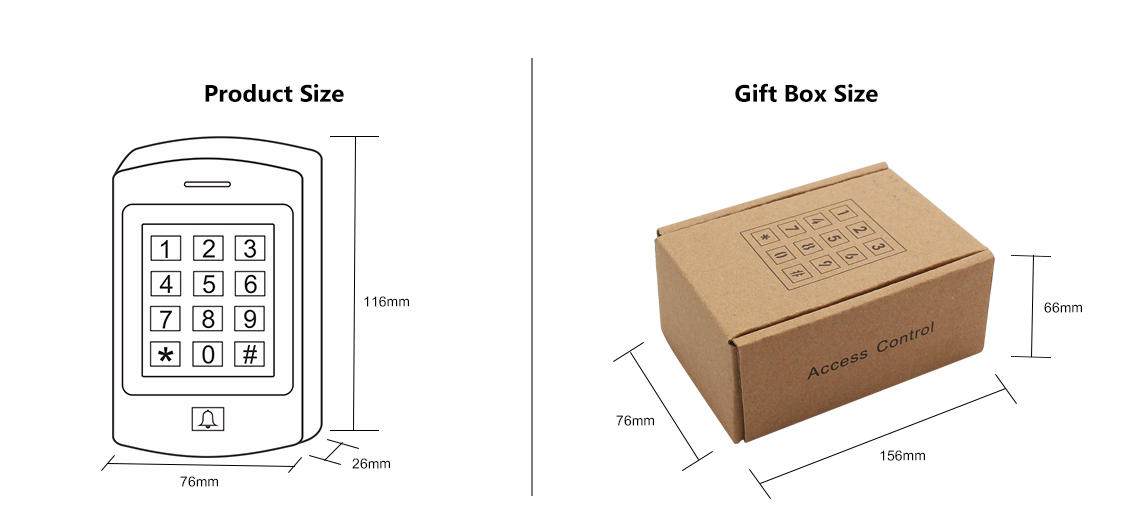

Dimensions
Unit Weight
Shipping Weight
|
Zinc-Alloy Enclosure
Powder Coat
11.6L x 7.6W x 2.6H (cm)
600g
700g
|
