8Channel 5.0A CCTV Backup power supply (Backup Battery)

Product descriptions

Specification
Feature
Drawing
Accessory
Download
Products Series

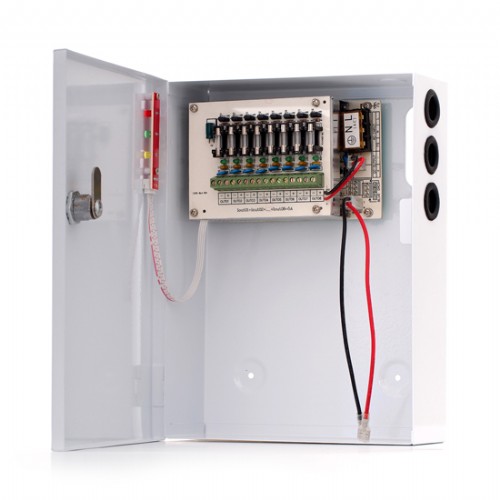

12V DC 5 Amp 8 channel CCTV Uninterruptible Metal Box Backup Power Supply.

Input: 100-240V AC @ 50-60Hz.
Output voltage: 12V± 15% DC.
Output Current: 5Amp.
Output Channel: 8 Channel.
Over-current Protection: 6A± 5%.
Ripple & Noise: ≤ 100mV.
Efficiency ≥ 85%.
Charge Voltage: 13.5V.
Charge Current (Max. ): 1Amp.
Battery Under-voltage Protection: 10V.
Enclosure Dimensions: 265*195*75mm.
Weight: 1.5kg.
With CE & FCC approval.
Packing: 10PCS/Master carton.

Remark:
Use of efficient,environmental protection switching power supply circuit frame,Optimization
of the shape and structure to facilitate the construction systems,Small ripple & noise -- video
output signal more stable,clearly images,Splitter output by pass failure to protect other
equipment to work,Power protection -- Output over-voltage protection,over-current protection,
short circuit protection.
