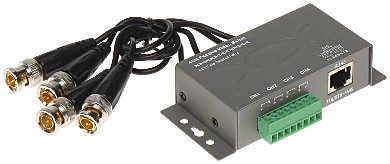

4CH Passive HD TVI/CVI/AHD Video Balun

Product descriptions

  • Specification
  • Feature
  • Drawing
  • Accessory
  • Download
  • Products Series
  •
  • This is a single unit - NOT a pair
  • 4 Port / Channel Video Receiver / Transmitter
  • HD TVI/CVI/AHD compatible
  • 4 x BNC Female to 1 x RJ45 Female + 8 Pin
  • Choice of RJ45 or push pin terminal
  • Up to 1200 Feet Transmission Distance using Cat-5
  • Cost savings by replacing costly coaxial cable
  • No power required

Model

4 Channel Passive Video Transceiver (RX-904TP )

     Applied  Devices

CCTV cameras, monitors, DVR, switchers, IP encoders, etc

Video

Video Format

PAL, NTSC, SECAM

Operating Frequency

DC to 8MHz

Max Distance

UTP Category 5e (24AWG) Color: 1100ft(330m)  B&W: 1950ft(600m)

Common-mode/Differential-mode rejection

         15 KHz to 5 MHz  60 dB typ

Impedance

Coax, Male BNC  75Ω unbalanced    UTP, Screw terminal  100Ω balanced

Attenuation

1.5 dB typ Max

Wire Type

Network Wiring

One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm)

Category Type

2 or better

Impedance

100 ± 20 ohms

DC Loop Resistance

52 ohms per 1,000ft (18 ohms per 100m)

Differential Capacitance

19 pF/ft max (62 pF/m max)

 Power



No external power required

Connector

Video input/output

BNC connector

Video input/output

Screw terminal

Mechanical

Housing

Aluminum alloy

Body Color

Dark blue

Dimensions (L*W*H)

 82*81*29mm(with BNC)

Net Weight

450g

Environmental

Operating Temperature

-20º ~ 70º C

Relative Humidity

0~95% (non-condensing)

Storage Temperature

-40º ~ 150º C





• 4 channel passive video transceiver.

• Full-motion color video signal up to 1100ft(330m) via UTP cat5e/6.

• NTSC,PAL&SECAM video format compatible.

• Real-time transmission.

• No power required.

• UTP RJ45; 2PIN DATA Terminal Block.

• 4(female) BNC.

• Exceptional interference rejection.

• 60 dB crosstalk and noise immunity.

• Compact size and easy installation.

 Applications:

• Multimedia network teaching system

• Medical monitoring display system

• Industrial antomation control system

• Banking,securities,financial information display system

• Remote network server monitoring

• Depatment store security

• Casino security

• Hospitals,airports,schools and banks

• security monitoring system





  • HD AHD/CVI/TVI Video Balun(RX-HD200NC)
  • 1 Channel Passive HD CVI/AHD/TVI Transceiver,AHD/CVI:300m(Max),TVI:200m(Max)
  • RX-HD200NC
  • 300M range for HD CVI/AHD/TVI Twisted BNC CCTV Video Balun Passive Transceivers UTP Balun BNC Cat5 CCTV UTP Video Balun,8MP
  • inquire "HD AHD/CVI/TVI Video Balun(RX-HD200NC)"
  • HD AHD/CVI/TVI Video Balun(RX-904PVD)
  • 4CH Passive HD TVI/CVI/AHD Data,Power & Video Balun
  • RX-904PVD
  • 4CH metal passive HD TVI/CVI/AHD power/video/data transceiver over UTP,can be installed in most cameras and save lots of installation fee.
  • inquire "HD AHD/CVI/TVI Video Balun(RX-904PVD)"
  • HD AHD/CVI/TVI Video Balun(RX-HD219C)
  • 1 Channel Passive HD CVI/AHD/TVI Video Transceiver,Linkable
  • RX-HD219C
  • 300M range for HD CVI/AHD/TVI Twisted BNC CCTV Video Balun Passive Transceivers UTP Balun BNC Cat5 CCTV UTP Video Balun,8MP
  • inquire "HD AHD/CVI/TVI Video Balun(RX-HD219C)"
  • HD AHD/CVI/TVI Video Balun(RX-HD201C)
  • 1Channel HD TVI/CVI/AHD Passive UTP Video Balun Transceiver for cctv
  • RX-HD201C
  • HD TVI/CVI/AHD Passive Video Balun 1Channel Video Transceiver no power CCTV System High performance video transmitting,Passive Video Balun for CCTV DVR,500m with passive transceiver 1500m with active transceiver,Unshielded Cat-5 or above twisted pair wire.
  • inquire "HD AHD/CVI/TVI Video Balun(RX-HD201C)"
  • HD AHD/CVI/TVI Video Balun(RX-HD600B)
  • 1 Channel Passive HD CVI/AHD/TVI Video Transceiver,Linkable
  • RX-HD600B
  • 300M range for HD CVI/AHD/TVI Twisted BNC CCTV Video Balun Passive Transceivers UTP Balun BNC Cat5 CCTV UTP Video Balun,8MP
  • inquire "HD AHD/CVI/TVI Video Balun(RX-HD600B)"
